Electrical Insulating Mat Supplier in UAE — High Voltage Rubber Matting
Vardhman® High Voltage Electrical Insulating Mat is Personal Protection Equipment laid in front of open switchboards and high voltage equipment. Available in Class A, B and C for maximum use voltages of 3.3 KV, 11 KV and 33 KV, ISI marked and type tested by ERDA and CPRI — exported factory-direct to Dubai, Abu Dhabi, Sharjah, Fujairah and Ras Al Khaimah.
- 3
- Mat Classes
- 65 KV
- Max Di-electric
- 1996
- Manufacturing Since
- ISI
- Marked & Tested
What Is an Electrical Insulating Mat?
An electrical insulating mat — also known as a rubber insulating mat — is a rubber sheet laid on the floor in front of live electrical equipment. Classed as Personal Protection Equipment, it insulates the operator from earth and protects against electric shock when switchgear is operated. Vardhman® has manufactured electrical insulating mats in India since 1996.
The mat is selected by the maximum use voltage of the equipment it sits in front of — not by its di-electric strength, which is a test value showing margin above that rating. Every class is ISI marked and type tested by ERDA and CPRI, and meets BS 921, IEC 61111 and ASTM. The compound is a synthetic elastomer, flame retardant, low temperature resistant, and resistant to acid, alkali, diesel and transformer oil, with an anti-skid finish.
Electrical Insulating Mat Classes for UAE
Three classes covering low voltage through 33 KV switchgear. Select by the maximum use voltage of the equipment the mat will sit in front of.
Low Voltage Panels
Max use voltage 3.3 KV
The thinnest class, for low voltage switchboards and distribution panels.
11 KV Switchgear
Max use voltage 11 KV
The most commonly specified class, for 11 KV switchgear rooms and industrial substations.
33 KV Switchyards
Max use voltage 33 KV
The high voltage class, for 33 KV switchyards and primary substations.
Electrical Insulating Mat Technical Specifications
Full published specification for the Class A, Class B and Class C rubber insulating mat range, as printed in the Vardhman® catalogue.
Vardhman® Electrical Insulating Mat — Class A, B & C
| Specification | Class A | Class B | Class C |
|---|---|---|---|
| Thickness | 2.0 mm | 2.5 mm | 3.0 mm |
| Max. use voltage | 3.3 KV | 11 KV | 33 KV |
| AC proof voltage | 10 KV | 22 KV | 36 KV |
| AC di-electric strength | 30 KV | 45 KV | 65 KV |
| Min. tensile strength | 15 N/mm² | 15 N/mm² | 15 N/mm² |
| Min. elongation | 250% | 250% | 250% |
| Retention after ageing (70±1°C, 168 hrs) | T.S./EL. min 75% | T.S./EL. min 75% | T.S./EL. min 75% |
| Retention after 48hr oil/acid/alkali immersion | T.S./EL. min 80% | T.S./EL. min 80% | T.S./EL. min 80% |
| Low temperature resistance | Yes | Yes | Yes |
| Flame retardance | Yes | Yes | Yes |
| Composition | Synthetic Elastomer | Synthetic Elastomer | Synthetic Elastomer |
How to Specify and Maintain an Insulating Mat
Four checks that decide whether the matting will pass an electrical safety audit.
Specify by Equipment Voltage
Select the class from the maximum use voltage of the switchgear the matting sits in front of, never from the di-electric strength figure. Class A covers up to 3.3 KV, Class B up to 11 KV and Class C up to 33 KV.
Cover the Full Working Area
The operator must be standing on the matting throughout the switching operation. Measure the full width of the panel run and allow generous depth in front of it — matting is made to order, so specify the area rather than a fixed sheet size.
Check the Environment
Substations and electrical rooms at refineries and petrochemical plants carry a real risk of oil and chemical exposure. The compound resists acid, alkali, diesel and transformer oil, retaining a minimum 80% of tensile strength and elongation after 48 hours immersion.
Retain the Test Certificate
Each consignment ships with its own test certificate. Auditors normally ask for the certificate alongside the ISI mark, so file it with the panel records at handover.
Where Insulating Mats Are Used in UAE
Vardhman® insulating matting in front of live electrical equipment across the UAE.
Substations & Switchyards
Class C matting rated to 33 KV maximum use voltage laid in front of primary switchgear and control panels at UAE transmission and distribution substations.
Petrochemical & Refineries
Flame retardant matting resistant to acid, alkali, diesel and transformer oil for electrical rooms at Ruwais, Fujairah and Jebel Ali, where spill exposure is a real risk.
Steel Plants & Foundries
Class B matting for 11 KV switchgear serving furnaces and rolling mills, alongside FLEXI HOSE® cable coolant hose on the same cooling circuits.
Desalination & Water Plants
Insulating matting for pump house and motor control centre electrical rooms at UAE desalination and water treatment facilities.
Construction & Infrastructure
Temporary and permanent site substations on UAE construction and infrastructure projects, where PPE compliance is audited before energisation.
Free Zones & Re-Export
Class A and Class B matting for distribution boards and panel rooms at free-zone warehousing, logistics and light-assembly facilities across JAFZA, Hamriyah and SAIF.
Why Buy Insulating Mats from Vardhman?
What electrical contractors and plant safety teams in UAE look for when specifying PPE matting.
Manufacturing Since 1996
A long-standing product line, not a recent addition to the catalogue.
ISI Marked
The class you order is backed by a certification mark, not a supplier's own declaration.
ERDA & CPRI Type Tested
Two independent Indian electrical testing authorities. Also meets BS 921, IEC 61111 and ASTM.
Chemical & Oil Resistant
Retains a minimum 80% of tensile strength and elongation after 48 hours of immersion.
Flame Retardant & Anti-Skid
Stays safe underfoot in switchgear rooms and air-conditioned electrical buildings.
Factory-Direct Export Terms
FOB, CIF and CFR from Nhava Sheva (JNPT) and Mundra Port, full document set on every shipment.
Insulating Mat Delivery to UAE
Mats are made to order. Send the class and the floor area to be covered for an FOB or CIF quotation within 24 hours.
Indicative Sea Freight Transit From India
| UAE Port / City | Emirate | Transit Time | Class Most Specified |
|---|---|---|---|
| Jebel Ali Port | Dubai | 4–6 days | Class A and Class B |
| Khalifa Port | Abu Dhabi | 4–6 days | Class C (33 KV switchyards) |
| Fujairah Port | Fujairah | 3–5 days | Class B and Class C |
| Port Khalid | Sharjah | 4–6 days | Class A and Class B |
| Ras Al Khaimah (Saqr Port) | Ras Al Khaimah | 5–7 days | Class B |
Four Product Families. One Manufacturer.
Electrical insulating mats are manufactured alongside all four hose families in-house at Bhiwadi, Rajasthan and exported to UAE.

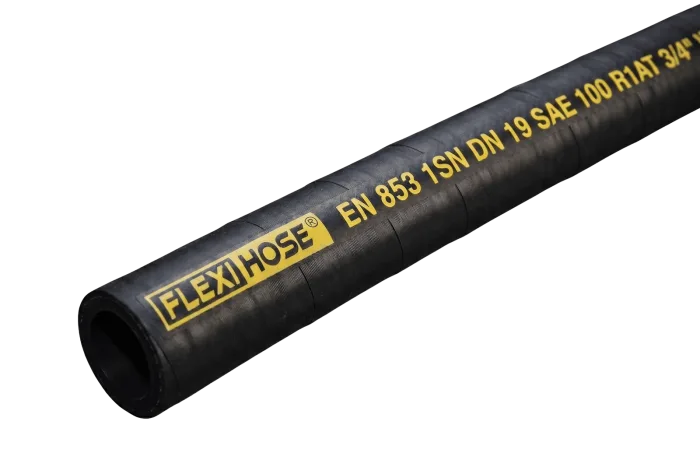

Hydraulic Hoses
SAE 100 and EN 856 hydraulic hoses up to 420 BAR.
View Hydraulic Hoses (UAE) →

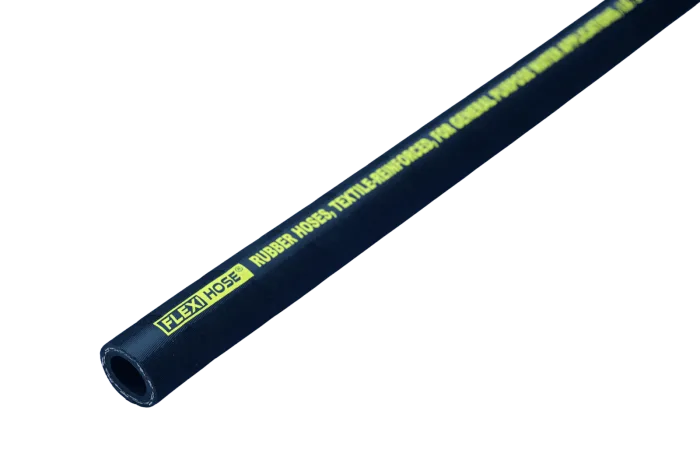

Industrial Rubber Hoses
Air, steam, sand blast, carbon free and water hoses.
View Industrial Hoses (UAE) →

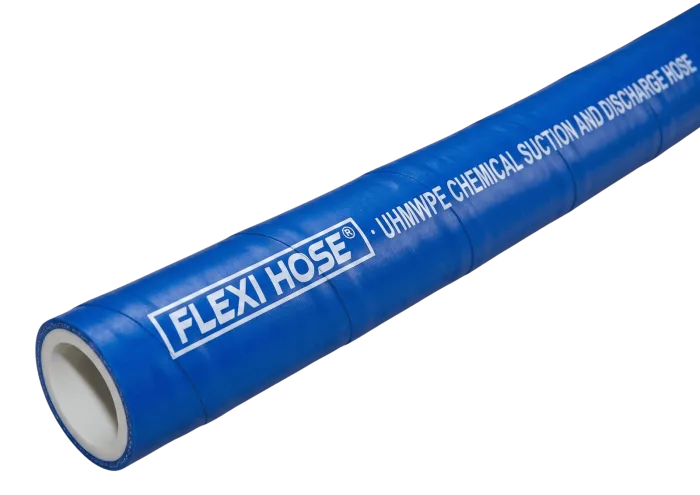

Suction & Discharge Hoses
Water, oil, fly ash and UHMWPE chemical hoses to 8 inch bore.
View Suction & Discharge (UAE) →
Metallic & PTFE Hoses
SS corrugated hose to EN ISO 10380 and SS PTFE Teflon hose.
View Metallic & PTFE Range →Ready to Order Electrical Insulating Mats for UAE?
Send the mat class, the area you need to cover and your destination port. Our export team replies within 24 hours with FOB or CIF pricing, lead time and test certificates.
Export to UAE & GCC
Full export documentation and commercial support provided from our Bhiwadi, Rajasthan factory.
Frequently Asked Questions
Straight answers on insulating mat specification, sourcing, standards and delivery for UAE buyers.
