SAE 100 R3 Hydraulic Hose Manufacturer in India — Double Textile Braid Hydraulic Hose Pipe
High-quality SAE 100 R3 double textile braid hydraulic hose manufactured to SAE J517 standard. Working pressure up to 69 bar · Bore sizes 1/2″ to 1″ · NBR inner tube · Temperature range −40°C to +100°C. Manufactured in Bhiwadi, Rajasthan by Vardhman Hydraulic Hoses Pvt. Ltd. (Flexihose India) — factory-direct supply across India and GCC export.

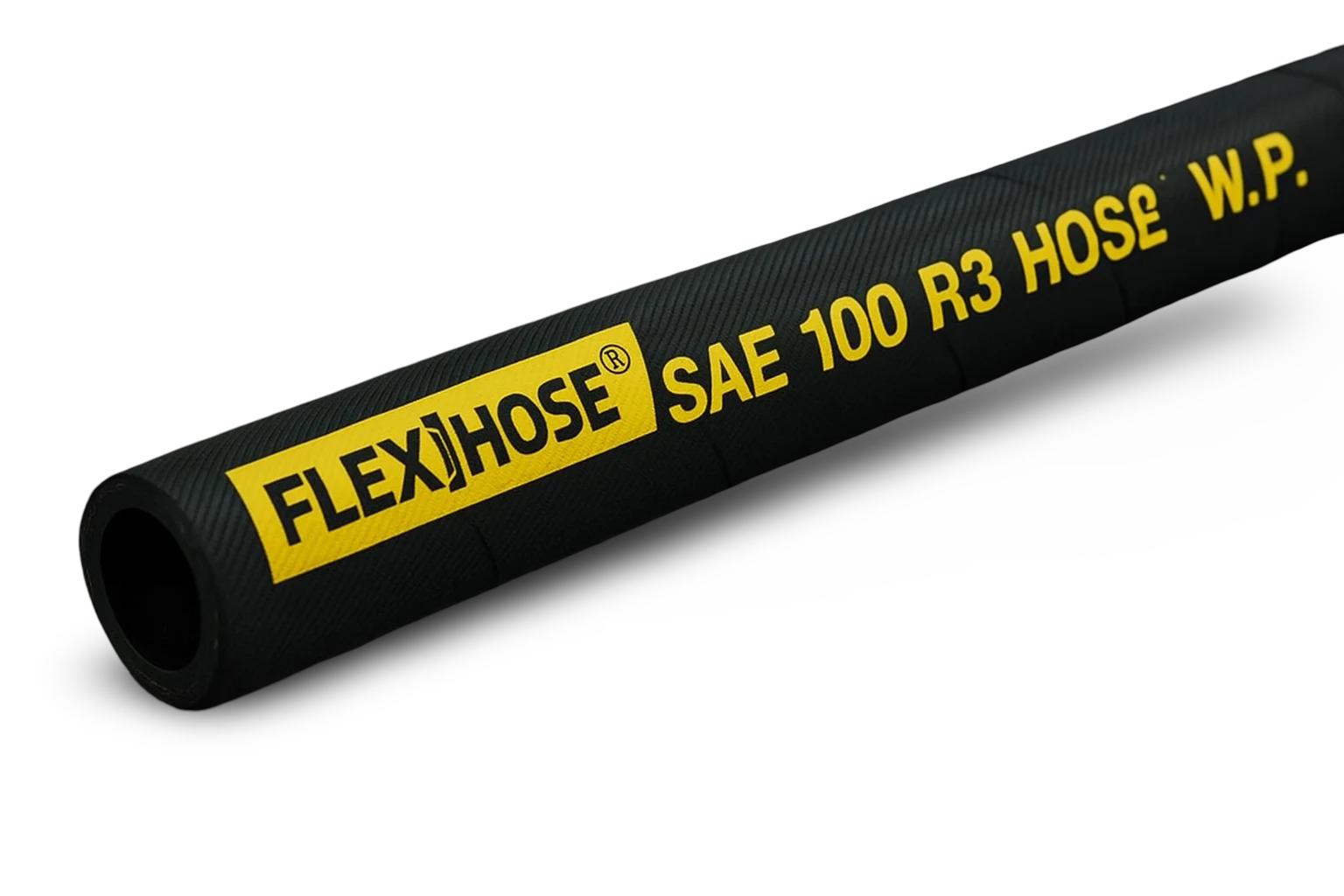

What Is SAE 100 R3 Hydraulic Hose?
The SAE 100 R3 hydraulic hose — also written as SAE 100R3 or R3 AT hose — is a double textile braid, low-to-medium pressure hydraulic hose manufactured to the SAE J517 / SAE 100 R3 standard. Unlike R1 and R2 which use steel wire braid reinforcement, R3 uses two braids of high-strength synthetic textile (typically polyester or rayon) — making it lighter, more flexible, and more cost-effective for low-pressure applications such as return lines, suction lines, and pilot circuits.

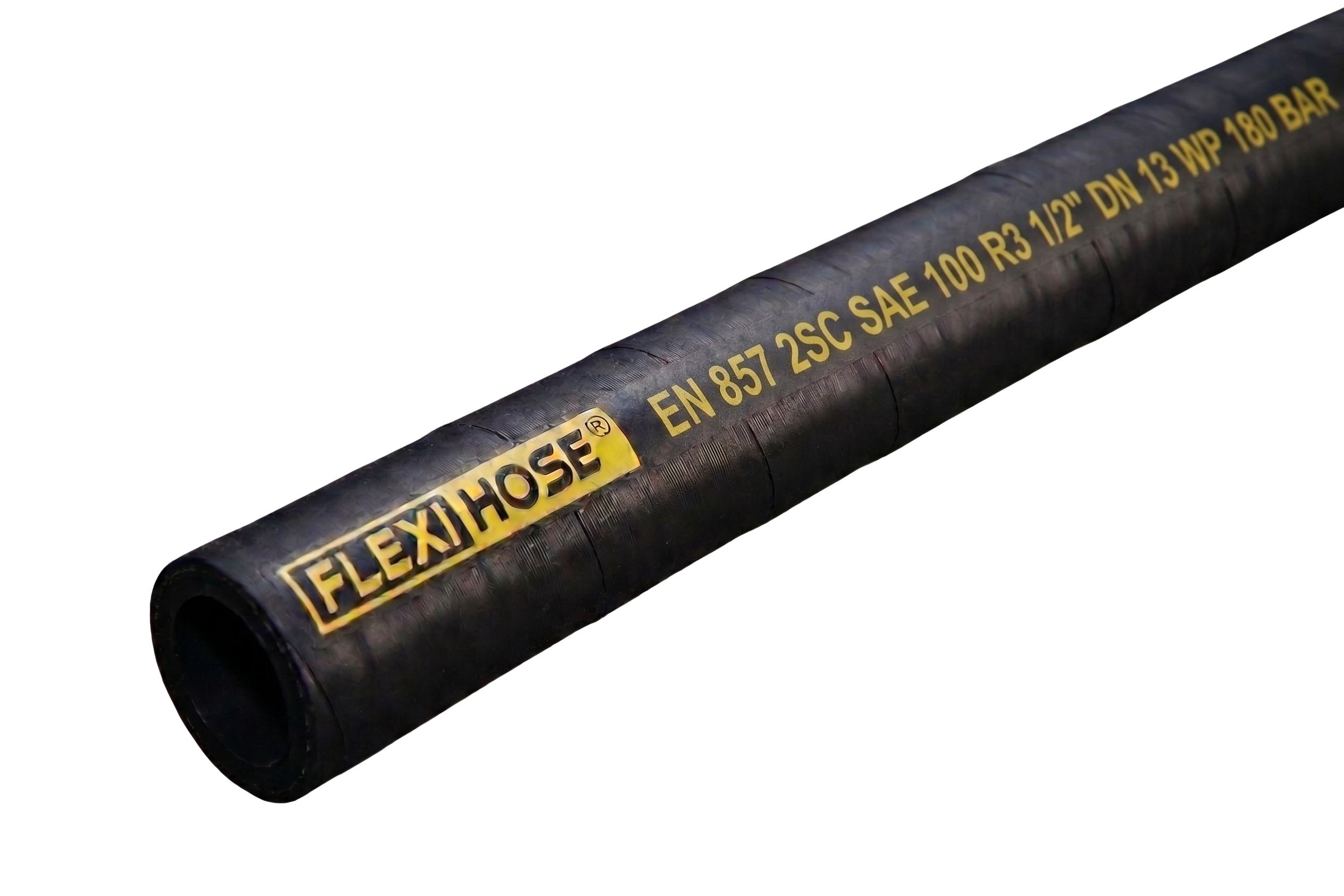

The Flexihose R3 hose pipe construction uses a black oil-resistant NBR (nitrile butadiene rubber) inner tube, two braids of high-strength synthetic textile reinforcement, and a weather-resistant synthetic rubber outer cover. Brochure data covers 1/2″ to 1″ nominal bore, working pressures from 21 bar (1″ bore) to 69 bar (1/2″ bore), minimum burst pressure of 4× working pressure per SAE J517, and a service temperature range of −40°C to +100°C.
Flexihose India manufactures SAE 100 R3 AT hose — a proven double textile braid hydraulic hose — at our ISO 9001:2015 certified plant in Bhiwadi, Rajasthan — approximately 60 km from Delhi. For OEM buyers, agricultural equipment distributors, industrial plant engineers, and GCC export buyers requiring low-pressure hydraulic hose, we supply factory-direct with test documentation and India-wide dispatch.
SAE 100 R3 Hydraulic Hose — Supply Configurations by Bore Size
The same SAE 100 R3 double textile braid construction is supplied across 1/2″ to 1″ bore sizes. Working pressure varies by bore — select the right size for your system pressure and flow requirement.
Ideal for hydraulic return lines, pilot circuits, and low-pressure suction lines on agricultural machinery, industrial equipment, and general hydraulic systems where flexibility and cost-effectiveness are priorities.
Used for low-pressure hydraulic circuits requiring flexible routing in confined spaces — return lines, drain lines, and pilot circuits on agricultural and industrial equipment where the textile braid provides superior flexibility over wire braid hose.
Widely used for industrial hydraulic return lines, tank return circuits, and low-pressure suction lines on power packs and machine tools where the 3/4″ bore provides adequate flow capacity at low working pressure.
For high-flow, low-pressure return lines on industrial hydraulic systems, power packs, and agricultural machinery where large bore and low working pressure are the primary requirements — the most cost-effective option for 1″ return line applications.
SAE 100 R3 — Full Technical Specification Table
Complete dimensional and pressure data for Flexihose SAE 100 R3 hydraulic hose — bore sizes 1/2″ to 1″ per SAE J517 standard.
| Nominal Bore (inch) | Nominal Bore (mm) | Mean O.D. (mm) | Max Working Pressure (bar) | Max Working Pressure (PSI) | Min Burst Pressure (bar) | Min Burst Pressure (PSI) |
|---|---|---|---|---|---|---|
| 1/2″ | 12.50 | 22.20 | 69 | 1,000 | 276 | 4,000 |
| 5/8″ | 16.00 | 26.20 | 55 | 800 | 220 | 3,200 |
| 3/4″ | 20.00 | 30.20 | 41 | 600 | 165 | 2,400 |
| 1″ | 25.00 | 37.30 | 21 | 300 | 83 | 1,200 |
Construction: Black oil-resistant NBR inner tube · Two braids of high-strength synthetic textile · Weather-resistant synthetic rubber outer cover · Service temperature −40°C to +100°C · Minimum burst pressure is 4× working pressure per SAE J517 · Compatible with petroleum-based hydraulic oils (HLP, HM, HV), water-based fluids, fuel, and lubricating oils. All R3 hose pipe sizes are available for immediate dispatch from our Bhiwadi plant.
How to Select the Right SAE 100 R3 Hydraulic Hose — Procurement Guide
A practical step-by-step guide for procurement managers, plant engineers, and OEM buyers selecting SAE 100 R3 hose for low-pressure hydraulic applications.
Confirm System Working Pressure
SAE 100 R3 is rated from 21 bar (1″ bore) to 69 bar (1/2″ bore). It is designed for low-pressure applications — return lines, drain lines, and pilot circuits. If your system pressure exceeds 69 bar at 1/2″ bore, specify SAE 100 R1 (single wire braid) or R2 (double wire braid) instead.
Identify the Application Type
R3 is the correct choice for hydraulic return lines (tank return), drain lines, low-pressure pilot circuits, and suction lines where the working pressure is consistently below 70 bar. For pressure lines above 70 bar, use R1 or R2. For very low pressure below 28 bar, R6 (single textile braid) is more cost-effective.
Select Bore Size by Flow Rate
1/2″ for pilot and small return lines. 5/8″ for medium-flow return circuits. 3/4″ for industrial return lines and power pack circuits. 1″ for high-flow return lines on large industrial systems. Undersizing bore increases pressure drop and heat generation — always size for the required flow rate.
Verify Fluid Compatibility
The NBR inner tube is compatible with petroleum-based hydraulic oils (HLP, HM, HV grades), water-glycol mixtures, fuel, and lubricating oils. For phosphate ester fluids, confirm inner tube compatibility before ordering.
Specify Fitting Type and Assembly
SAE 100 R3 is dimensionally compliant with SAE J517 and accepts standard BSP, JIC (37° flare), and NPT fittings. Flexihose can supply cut lengths, 50m or 100m coil reels, or complete hose assemblies with crimped fittings to your specification.
Send the Full RFQ Details
For fastest quoting, WhatsApp: bore size, required length, working pressure, fluid type, fitting type (if assembly required), quantity, delivery city, and whether you need test certificates. We respond within a few hours.
SAE 100 R3 Hose Construction & Materials
Layer-by-layer construction of Flexihose SAE 100 R3 hydraulic hose — what each component does and why the textile braid construction is ideal for low-pressure hydraulic applications.
NBR Inner Tube
Black oil-resistant NBR (nitrile butadiene rubber) synthetic rubber compound. Formulated to resist petroleum-based hydraulic oils (HLP, HM, HV grades), water-glycol mixtures, fuel, and lubricating oils. The inner tube is the primary fluid barrier — its integrity determines hose service life under continuous low-pressure cycling in return line and pilot circuit applications.
Double Textile Braid Reinforcement
Two braids of high-strength synthetic textile (polyester or rayon). The textile braid construction is what distinguishes R3 from R1 and R2 — it provides excellent flexibility and lighter weight compared to steel wire braid, making R3 easier to route in confined spaces. Suitable for low-pressure applications up to 69 bar at 1/2″ bore per SAE J517.
Synthetic Rubber Outer Cover
A weather-resistant, ozone-resistant synthetic rubber outer cover rated −40°C to +100°C. Protects the textile braid reinforcement from mechanical damage, UV exposure, and mild chemical splash in field conditions. The outer cover is designed for the lower-abrasion environments typical of return line and pilot circuit applications.
In-House Testing & Certification
Every production batch is tested at our Bhiwadi in-house laboratory with NABL-calibrated equipment: hydrostatic burst pressure test (minimum 4× working pressure per SAE J517), dimensional checks, and outer cover adhesion tests. Test certificates with actual measured values are issued as standard with every order.
SAE 100 R3 vs R6 vs R1 — Which Low-Pressure Hydraulic Hose to Choose?
Buyers often need to choose between R3, R6, and R1 for low-to-medium pressure hydraulic applications. Here is a practical comparison.
| Parameter | SAE 100 R3 | SAE 100 R6 | SAE 100 R1 AT |
|---|---|---|---|
| Reinforcement | 2 × Synthetic textile braid | 1 × Synthetic textile braid | 1 × High-tensile steel wire braid |
| Max WP at 1/2″ bore | 69 bar (1,000 PSI) | 28 bar (406 PSI) | 160 bar (2,320 PSI) |
| Max WP at 1″ bore | 21 bar (300 PSI) | 13 bar (188 PSI) | 88 bar (1,275 PSI) |
| Temperature Range | −40°C to +100°C | −40°C to +100°C | −40°C to +100°C |
| Flexibility | Excellent | Excellent | Good |
| Typical Use | Return lines, pilot circuits, low-pressure suction | Very low-pressure return lines, drain lines | Medium-pressure circuits, tractors, excavators |
| Relative Cost | Low | Lowest | Medium |
SAE 100 R3 is the correct choice for low-pressure return lines and pilot circuits between 28 bar and 69 bar. For very low-pressure drain lines below 28 bar, R6 is more cost-effective. For pressure lines above 70 bar, specify R1 or R2. Not sure? WhatsApp your system pressure and bore size to +91 8094002348 for a recommendation.
SAE 100 R3 Hydraulic Hose Applications & Industries
Typical use environments for Flexihose SAE 100 R3 hydraulic hose across agriculture, industrial, and export markets in India and the GCC.
Hydraulic Return Lines
Tank return lines on tractors, excavators, industrial power packs, and machine tools — R3 is the standard specification for low-pressure return circuits where flexibility and cost-effectiveness are the primary requirements.
Pilot & Control Circuits
Low-pressure pilot circuits on construction equipment, agricultural machinery, and industrial hydraulic systems — R3 provides the flexibility needed for pilot line routing in confined equipment spaces.
Agricultural Machinery
Tractor return lines, implement drain circuits, and low-pressure agricultural hydraulic connections — R3 is widely used in Indian agricultural equipment where low-pressure, flexible hose is required for return and drain circuits.
Industrial Power Packs
Return lines and drain lines on hydraulic power packs, machine tool circuits, and industrial hydraulic systems — R3 provides the correct pressure rating and flexibility for low-pressure return circuit applications.
Commercial Vehicles
Return lines and drain circuits on tipper trucks, crane trucks, and municipal vehicles — R3 is used for low-pressure hydraulic circuits on commercial vehicles across India where flexibility and cost are key selection criteria.
OEM Hose Assemblies
Complete SAE 100 R3 hose assemblies with crimped BSP, JIC, or NPT fittings for equipment manufacturers across India — supplied to drawing or specification for agricultural, construction, and industrial OEMs requiring low-pressure hose assemblies.
Why Buy SAE 100 R3 Hydraulic Hose from Flexihose India?
What OEM buyers, agricultural distributors, industrial procurement teams, and plant engineers value when sourcing SAE 100 R3 hose directly from the manufacturer.
ISO 9001:2015 Certified — Verifiable Quality
Our Bhiwadi plant operates under a certified Quality Management System. Every R3 hose batch is tested for burst pressure (minimum 4× WP per SAE J517) and dimensional accuracy. Test certificates with actual measured values ship with every order.
SAE J517 Compliant — Global Fitting Compatibility
Our R3 hose is dimensionally compliant with SAE J517, meaning it accepts standard BSP, JIC, and NPT fittings sourced anywhere in India or internationally. No proprietary fitting lock-in.
Factory-Direct — No Middlemen
You deal directly with the manufacturer. Factory-direct pricing means significant cost savings on bulk and OEM orders versus trading company sources. Our technical team provides accurate specification support.
45+ Years of Manufacturing Experience
Vardhman Hydraulic Hoses Pvt. Ltd. has been manufacturing rubber hoses since 1980. Our R3 hose is trusted by agricultural OEMs, industrial buyers, and construction equipment distributors across India and the GCC.
Custom Lengths, Coils & Assemblies
Cut lengths, 50m and 100m coil reels, and complete hose assemblies with crimped fittings — all available. Share your drawing or specification via WhatsApp for a fast turnaround quote.
Export-Ready Documentation
For GCC buyers: commercial invoice, packing list, certificate of origin, and test certificates as standard. Sea freight to Dubai approximately 10–12 days from Bhiwadi. Export enquiries: mktg@flexihoseindia.com or +91 9251554066.
Pan-India SAE 100 R3 Hydraulic Hose Supply & Distribution
Factory-direct SAE 100 R3 hydraulic hose dispatch from Bhiwadi, Rajasthan for OEM buyers, agricultural distributors, and industrial plant engineers across India.
Our plant is located in the RIICO Industrial Area, Bhiwadi, Rajasthan — approximately 60 km from Delhi. This gives Flexihose strong freight access to North India and efficient road connectivity for agricultural, industrial, and construction buyers nationwide.
For RFQs, share the bore size, required length, working pressure, fluid type, fitting type (if assembly required), quantity, and destination city. We confirm availability, lead time, and pricing within a few hours.
| City / Region | Transit Time | Key Industries |
|---|---|---|
| Delhi NCR | 1–2 days | Manufacturing, construction, auto OEM |
| Jaipur & Rajasthan | Same/next day | Agriculture, marble, quarrying, mining |
| Ludhiana & Chandigarh | 1–2 days | Agri machinery, tractor parts, OEM |
| Ahmedabad / Vadodara / Surat | 2–3 days | Textile machinery, pharma, chemical |
| Mumbai & Pune | 3–4 days | Marine, industrial, automotive OEM |
| Chennai & Coimbatore | 4–5 days | Tractor OEMs, pump manufacturers |
| Hyderabad & Bengaluru | 4–5 days | Infrastructure, mining, construction |
| Kolkata & Bhubaneswar | 4–5 days | Mining, port equipment, heavy industry |
Need R3 hose urgently? WhatsApp your bore size, quantity, and city — we confirm stock and dispatch timeline within a few hours. Bulk orders, annual rate contracts, and OEM supply arrangements available.
Check Availability for Your CityExplore the Full Flexihose Hydraulic Hose Range
Not sure R3 is the right choice? Compare with the full Flexihose hydraulic hose range — R1, R2, R6, and EN 856 4SP/4SH.
Share your bore size, required length, working pressure, fluid type, and quantity — our technical team will confirm the correct R3 hose pipe specification and send a factory-direct quote within a few hours. Pan-India supply from Bhiwadi and GCC export available.
Frequently Asked Questions — SAE 100 R3 Hydraulic Hose
SAE 100 R3 hydraulic hose is a double textile braid, low-to-medium pressure hydraulic hose manufactured to the SAE J517 / SAE 100 R3 standard. It consists of a black oil-resistant NBR inner tube, two braids of high-strength synthetic textile reinforcement, and a weather-resistant synthetic rubber outer cover. It is specified for hydraulic return lines, pilot circuits, drain lines, and low-pressure suction lines where flexibility and cost-effectiveness are priorities.
SAE 100 R3 has two textile braids and is rated up to 69 bar at 1/2″ bore — suitable for return lines and pilot circuits between 28 bar and 69 bar. SAE 100 R6 has a single textile braid and is rated up to 28 bar at 1/2″ bore — more cost-effective for very low-pressure drain lines and return circuits below 28 bar. Both offer excellent flexibility compared to steel wire braid hose.
The maximum working pressure of SAE 100 R3 hydraulic hose varies by bore size: 69 bar at 1/2″ bore, 55 bar at 5/8″, 41 bar at 3/4″, and 21 bar at 1″. The minimum burst pressure is 4× the working pressure per SAE J517.
SAE 100 R3 hydraulic hose is used for low-pressure hydraulic return lines, drain lines, pilot circuits, and suction lines on tractors, excavators, industrial power packs, machine tools, and commercial vehicles. It is suitable for petroleum-based hydraulic oils, water-based fluids, fuel, and lubricating oils at working pressures up to 69 bar and temperatures from minus 40 degrees C to plus 100 degrees C.
SAE 100 R3 hydraulic hose price in India varies by bore size, order quantity, and delivery location. As a direct manufacturer, Flexihose India offers factory-direct pricing without trading margins. WhatsApp +91 8094002348 with your bore size, quantity, and city for a current price quote.
Yes. Flexihose India exports SAE 100 R3 hydraulic hose to the UAE, Saudi Arabia, Oman, Kuwait, and other GCC markets. Full export documentation is standard. Sea freight to Dubai is approximately 10–12 days from Bhiwadi. Contact our export team at mktg@flexihoseindia.com or call +91 9251554066.
Flexihose SAE 100 R3 hydraulic hose is manufactured by Vardhman Hydraulic Hoses Pvt. Ltd. at their ISO 9001:2015 certified plant in F-621, Phase-1, RIICO Industrial Area, Bhiwadi, Rajasthan 301019 — approximately 60 km from Delhi. The company has been manufacturing rubber hoses since 1980.
