UHMWPE Hose Manufacturer in India — Suction & Discharge for Chemical & Food Grade Transfer
Heavy-duty UHMWPE hose engineered for suction and discharge of chemicals, solvents, acids, alkalis, and corrosive fluids. UHMWPE translucent lining, helical steel wire reinforcement, blue EPDM cover — manufactured in Bhiwadi, Rajasthan and supplied to industrial buyers across India and GCC markets.
What Is UHMWPE Hose?
UHMWPE hose is a heavy-duty suction and discharge hose used to safely transfer aggressive chemicals, solvents, acids, alkalis, and corrosive process fluids. The Flexihose brochure lists this range as UHMWPE Chemical & Food Grade Suction & Discharge Hose — designed for industrial transfer duty where broad chemical resistance, flexible handling, and suction stability are critical.

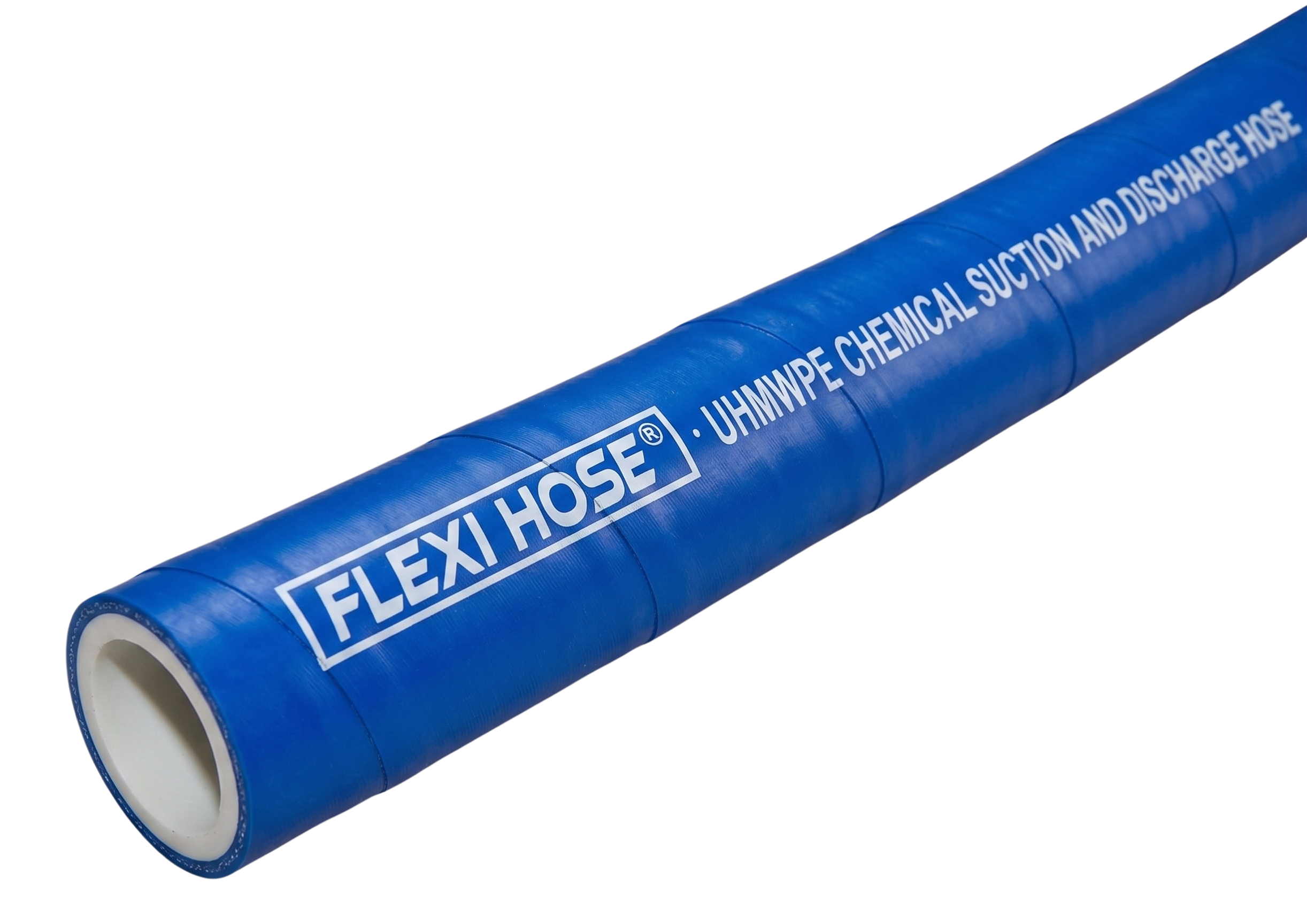

The Flexihose UHMWPE hose construction uses a smooth white synthetic rubber with UHMWPE translucent lining, high tensile synthetic plies with helical steel wire, and a blue EPDM outer cover resistant to chemical products, ozone, weather, and abrasion. Brochure data covers 3/4″ to 4″ nominal bore, 240 psi / 16 bar working pressure, 720 psi / 48 bar minimum burst pressure, and a -20°C to +120°C service range.
Flexihose India manufactures UHMWPE hose at our ISO 9001:2015 certified plant in Bhiwadi, Rajasthan. For chemical processors, pharma plants, tank farms, food ingredient lines, EPC contractors, and export buyers, we supply factory-direct with technical selection support, test documentation, and India-wide dispatch.
Common UHMWPE Hose Supply Configurations
The same core Flexihose construction is supplied across multiple bore sizes depending on transfer volume, suction requirement, and plant layout.
Ideal for chemical dosing skids, plant process connections, solvent circulation loops, and compact transfer stations where flexible routing matters.
Used for routine suction and discharge of acids, alkalis, process chemicals, and corrosive liquids in production, storage, and utility lines.
Suited to tanker unloading, drum-to-tank transfer, and bulk handling points where higher flow and reliable suction stability are required.
For high-volume loading, unloading, and plant-to-storage movement of corrosive fluids where pressure stability and handling durability matter.
UHMWPE Hose Technical Specifications
Brochure-derived technical data for Flexihose UHMWPE Suction & Discharge Hose — sizes 3/4″ to 4″ nominal bore.
| Nominal Bore | ID (mm) | Mean O.D. (mm) | Max Working Pressure (psi) | Max Working Pressure (bar) | Min Burst Pressure (psi) | Min Burst Pressure (bar) |
|---|---|---|---|---|---|---|
| 3/4″ | 19.00 | 30.8 | 240 | 16 | 720 | 48 |
| 1″ | 25.00 | 36.8 | 240 | 16 | 720 | 48 |
| 1-1/4″ | 32.00 | 47.2 | 240 | 16 | 720 | 48 |
| 1-1/2″ | 38.5 | 53.8 | 240 | 16 | 720 | 48 |
| 2″ | 51.0 | 67.6 | 240 | 16 | 720 | 48 |
| 2-1/2″ | 63.5 | 82.8 | 240 | 16 | 720 | 48 |
| 3″ | 76.0 | 94.8 | 240 | 16 | 720 | 48 |
| 4″ | 102.0 | 122.8 | 240 | 16 | 720 | 48 |
Construction listed in the brochure: smooth white synthetic rubber with UHMWPE translucent lining, high tensile synthetic plies with helical steel wire, blue EPDM cover resistant to chemical products, ozone, weather and abrasion, and service temperature of -20°C to +120°C.
How to Choose the Right UHMWPE Hose — Selection Guide
A practical step-by-step guide for procurement teams, plant engineers, and chemical process buyers selecting UHMWPE hose for their application.
Confirm the Exact Chemical Media
Share the chemical name, concentration, and whether the duty involves acids, alkalis, solvents, or mixed corrosive fluids. UHMWPE hose is chosen for wide chemical resistance, but media-level selection should always start with exact fluid details.
Identify Suction or Discharge Duty
If the hose must pull fluid from tanks, drums, IBCs, or underground storage, suction stability matters. This brochure construction includes helical steel wire, making it suitable for both suction and discharge applications.
Check Temperature Range
The brochure service range is -20°C to +120°C. For chemical systems with heat tracing, hot CIP-style utility fluids, or elevated process temperatures, always confirm the actual operating temperature rather than the ambient plant temperature.
Select Bore Size by Flow Rate
3/4″–1″ sizes suit process skids and controlled transfer points. 1-1/4″–2″ are common for plant transfer. 2-1/2″–4″ sizes are typically used for tanker unloading, storage transfer, and higher-volume plant utility movement.
Review Pressure Margin
Flexihose brochure data lists 16 bar maximum working pressure and 48 bar minimum burst pressure. If your system has pulsation, surge, vacuum loading, or frequent line movement, share those details so the hose assembly can be specified more safely.
Send the Full RFQ Details
For faster quoting, send hose size, required length, chemical media, concentration, working temperature, suction/discharge duty, quantity, delivery city, and whether you need documentation for export, audit, or tender submission.
UHMWPE Hose Construction & Materials
The layer-by-layer construction of Flexihose UHMWPE hose — what each component does and why it matters for chemical transfer duty.
UHMWPE Lining
The brochure calls out a smooth white synthetic rubber construction with UHMWPE translucent lining. UHMWPE is selected where broader resistance to aggressive chemicals and lower-friction transfer characteristics are required.
Helix-Reinforced Body
High tensile synthetic plies with helical steel wire give the hose its combined suction and discharge capability. This helps resist collapse under vacuum while maintaining flexibility for plant transfer layouts and unloading operations.
Blue EPDM Cover
The outer cover is specified as a blue EPDM rubber compound resistant to chemical products, ozone, weather, and abrasion, with wrap finish. This supports outdoor and industrial environments where splash, drag, and surface wear are common.
Pressure & Dimensional Reliability
Brochure data lists a consistent 16 bar working pressure and 48 bar minimum burst pressure across the range. Combined with in-house testing capability at Bhiwadi, this makes the range suitable for technically reviewed industrial RFQs.
Chemical Compatibility — What Can UHMWPE Hose Handle?
UHMWPE hose lining provides broad resistance to a wide range of industrial chemicals. The table below lists common media categories handled by UHMWPE hose. For specific fluids, concentrations, or temperatures outside standard ranges, always confirm with our technical team before ordering.
| Chemical / Media Category | Examples | Suitability | Notes |
|---|---|---|---|
| Inorganic Acids | Hydrochloric acid (HCl), Sulphuric acid (H₂SO₄), Nitric acid (dilute), Phosphoric acid | Suitable | Confirm concentration and temperature for strong oxidising acids |
| Alkalis & Caustics | Sodium hydroxide (NaOH), Potassium hydroxide (KOH), Ammonia solution | Suitable | Broad alkali resistance; confirm concentration for hot caustic service |
| Organic Solvents | Acetone, Methanol, Ethanol, IPA, Ethyl acetate, MEK | Suitable | UHMWPE lining is widely used for solvent transfer duty |
| Chlorinated Solvents | Methylene chloride, Trichloroethylene, Perchloroethylene | Confirm | Confirm specific solvent and concentration before use |
| Dyes & Intermediates | Reactive dyes, Disperse dyes, Azo intermediates, Pigment slurries | Suitable | Widely used in Gujarat and Maharashtra dye manufacturing clusters |
| Agrochemicals | Pesticide formulations, Herbicide concentrates, Fertiliser solutions | Suitable | Confirm active ingredient and carrier solvent |
| Food Ingredients & Edible Oils | Vegetable oils, Glucose syrup, Edible acid solutions | Confirm | Brochure classifies as food grade; confirm media and documentation requirement |
| Pharma Process Fluids | API solvents, CIP cleaning solutions, Process water with chemical additives | Confirm | Confirm regulatory documentation requirement for pharma applications |
⚠ This table is a general guide based on UHMWPE lining properties. Always confirm the specific chemical, concentration, temperature, and pressure with our technical team before finalising hose selection. WhatsApp the fluid details to +91 8094002348 for a faster response.
UHMWPE Hose vs Other Chemical Hose Linings — Which to Choose?
Buyers often compare UHMWPE hose with PTFE, EPDM, and PVC-lined hoses. Here is a practical comparison to help with selection.
| Lining Material | Chemical Resistance | Temperature Range | Suction Capability | Typical Use Case |
|---|---|---|---|---|
| UHMWPE (Flexihose) | Broad — acids, alkalis, solvents, dyes | -20°C to +120°C | Yes — helical steel wire | Chemical plants, tanker unloading, dye/pharma transfer |
| PTFE | Very broad — near-universal | -60°C to +200°C | Limited (corrugated bore) | High-temp, ultra-aggressive media, small bore process lines |
| EPDM | Good for water, steam, dilute acids/alkalis | -40°C to +150°C | Depends on construction | Water, steam, mild chemical service |
| PVC / Nitrile | Limited — not suitable for strong acids/solvents | 0°C to +60°C | Depends on construction | Light-duty water, compressed air, mild fluids |
UHMWPE is the preferred choice when you need broad chemical resistance, suction capability, and a flexible hose that can handle tanker-to-tank or drum-to-process transfer duty. For ultra-high temperatures or extremely aggressive oxidising media, PTFE may be more appropriate — contact us to discuss.
UHMWPE Hose Applications & Industries
Typical use environments for Flexihose UHMWPE hose across chemical, pharma, food, and process industries in India and export markets.
Chemical Plants
Routine movement of acids, alkalis, solvents, and corrosive intermediates within production lines, utility areas, and storage sections.
Tanker Loading & Unloading
Flexible suction and discharge hose for transfer between tankers, drums, IBCs, and storage tanks where helix reinforcement is important.
Dyes, Intermediates & Specialty Chemicals
Well suited to process environments in Gujarat, Maharashtra, Telangana, and other specialty chemical manufacturing clusters.
Pharma & Process Utility Lines
Useful for process transfer lines where plant buyers need chemical resistance and a cleaner internal construction for controlled fluid handling.
Food Ingredient Handling
The brochure classifies this as a chemical & food grade hose. For exact media and documentation requirements, application-specific confirmation should be taken before finalization.
Export Projects & EPC Systems
Suitable for industrial hose packages supplied to GCC buyers, process skids, storage installations, and plant expansion projects requiring technical data support.
Why Choose Flexihose UHMWPE Hose
What chemical processing buyers, distributors, and engineering teams typically value when sourcing UHMWPE hose directly from the manufacturer.
ISO 9001:2015 Certified Manufacturing
Flexihose operates from an ISO 9001:2015 certified facility in Bhiwadi, Rajasthan with in-house testing capability and a brochure-backed industrial product range.
Brochure-Specified Chemical Transfer Construction
UHMWPE translucent lining, synthetic plies with helical steel wire, blue EPDM cover, 16 bar working pressure, and -20°C to +120°C temperature range — clearly defined technical basics for RFQ discussions.
Pan-India Supply + GCC Export Readiness
Direct manufacturer supply, freight support across Indian industrial regions, and export support for UAE, Saudi Arabia, Oman, Kuwait, and other GCC buyers.
Pan-India UHMWPE Hose Supply & Distribution
Factory-direct UHMWPE hose dispatch from Bhiwadi, Rajasthan for chemical processors, industrial distributors, and project buyers across India.
Our plant is located in the RIICO Industrial Area, Bhiwadi, Rajasthan — approximately 60 km from Delhi. This gives Flexihose strong freight access to North India and efficient road connectivity for chemical, pharma, and process-industry buyers nationwide.
For RFQs, share the hose size, chemical media, concentration, operating temperature, suction/discharge duty, required length, and destination city. We can then respond with availability, lead time, and commercial support more accurately.
| City / Region | Transit Time | Key Industries |
|---|---|---|
| Delhi NCR | 1–2 days | Chemical distributors, EPC, process engineering |
| Jaipur & Rajasthan | Same/next day | Industrial processing, mining chemicals, manufacturing |
| Ahmedabad / Vadodara / Surat | 2–3 days | Chemicals, dyes, intermediates, pharma |
| Mumbai & Pune | 3–4 days | Petrochem, pharma, engineering plants |
| Chennai & Coimbatore | 4–5 days | Process industry, food engineering, manufacturing |
| Hyderabad & Bengaluru | 4–5 days | Pharma, biotech, specialty chemicals |
| Kolkata / Haldia / Bhubaneswar | 4–5 days | Ports, process plants, bulk handling |
Need UHMWPE hose selection support? WhatsApp your fluid name, concentration, temperature, hose size, length, suction/discharge duty, and delivery city. We will confirm the right UHMWPE hose configuration and dispatch timeline.
Check Availability for Your CityFrequently Asked Questions
UHMWPE hose is a heavy-duty suction and discharge hose with a UHMWPE (Ultra High Molecular Weight Polyethylene) translucent lining, high tensile synthetic plies with helical steel wire reinforcement, and a blue EPDM outer cover. It is used for transferring chemicals, solvents, acids, alkalis, and corrosive fluids in industrial plants, tank farms, and tanker loading/unloading operations.
UHMWPE hose is used for suction and discharge of chemicals, solvents, acids, alkalis, and corrosive fluids. Common applications include chemical plant process lines, tanker unloading, storage tank transfer, dye and intermediate handling, pharma process utility lines, and food ingredient transfer.
Flexihose UHMWPE hose is available in 8 sizes: 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″, and 4″ nominal bore.
Flexihose UHMWPE hose has a maximum working pressure of 240 psi (16 bar), a minimum burst pressure of 720 psi (48 bar), and a service temperature range of -20°C to +120°C.
Yes. Flexihose UHMWPE hose includes high tensile synthetic plies with helical steel wire reinforcement, which prevents collapse under vacuum and makes it suitable for both suction and discharge duty.
The Flexihose brochure classifies this as UHMWPE Chemical and Food Grade Suction and Discharge Hose. For any food-contact application, the specific media, process conditions, and documentation requirements should be confirmed with the technical team before ordering.
UHMWPE hose is broadly resistant to inorganic acids (HCl, H₂SO₄, phosphoric acid), alkalis (NaOH, KOH), organic solvents (acetone, methanol, IPA, ethyl acetate), dyes, agrochemicals, and many process fluids. For specific chemicals, concentrations, or temperatures, always confirm with the technical team before ordering. WhatsApp the fluid details to +91 8094002348 for a faster response.
UHMWPE hose offers broad chemical resistance with a flexible rubber body and helical steel wire for suction duty — well suited for tanker unloading, drum transfer, and plant utility lines. PTFE hose has near-universal chemical resistance and handles higher temperatures, but is better suited to small-bore, high-temperature, or ultra-aggressive media. For most industrial chemical transfer duty in India, UHMWPE hose is the more practical and cost-effective choice.
Flexihose UHMWPE hose is manufactured by Vardhman Hydraulic Hoses Pvt. Ltd. at their ISO 9001:2015 certified plant in F-621, Phase-1, RIICO Industrial Area, Bhiwadi, Rajasthan 301019 — approximately 60 km from Delhi.
Yes. Flexihose supplies UHMWPE hose across India from Bhiwadi, Rajasthan and also supports export inquiries for UAE, Saudi Arabia, Oman, Kuwait, and other GCC destinations. Share your hose size, media, temperature, length, and destination for availability and lead time.
The fastest way is to WhatsApp us at +91 8094002348 with: (1) chemical name and concentration, (2) operating temperature, (3) suction or discharge duty, (4) UHMWPE hose bore size and length, (5) quantity, and (6) delivery city. We will confirm availability, lead time, and pricing. For bulk or project orders, test documentation and commercial support for tenders or export requirements can also be provided.
