SAE 100 R2 Hydraulic Hose Manufacturer

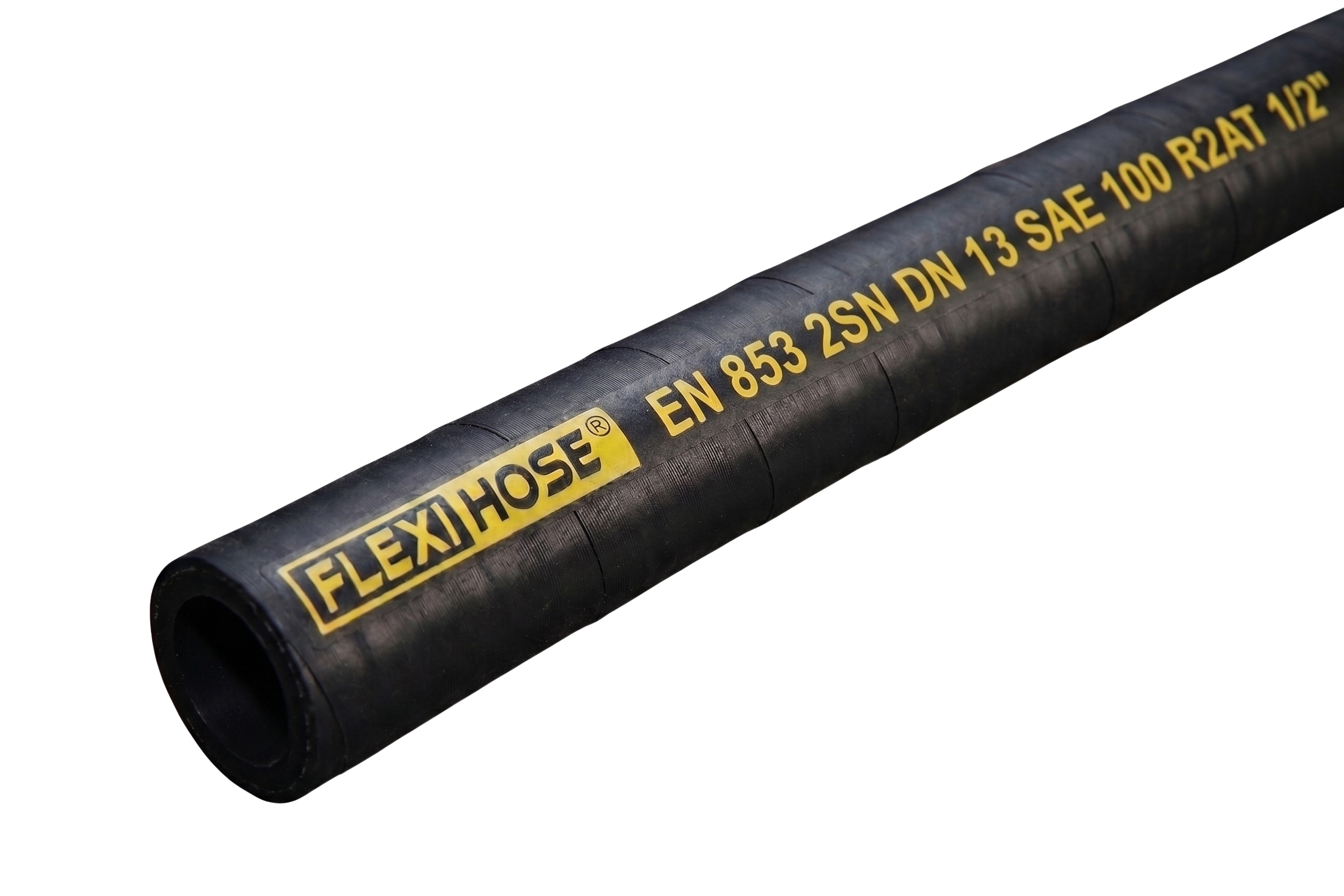

SAE 100 R2 Hydraulic Hose
This robust hydraulic hose is purpose-built to support systems operating with petroleum or water-based fluids and is also ideal for transferring fuel and lubricating oils. Designed for high-demand environments, the hose features an inner lining composed of black oil-resistant synthetic rubber, offering superior resilience against oil exposure and degradation. This ensures stable, leak-free performance and extends the service life of the hose in harsh conditions. To withstand higher pressures and enhance structural strength, the hose is reinforced with two braids of high tensile, brass-coated steel wire.
| NOMINAL BORE | MEAN O.D. (MM) |
MAX. WORKING PRESSURE | MIN. BURST PRESSURE | |||
|---|---|---|---|---|---|---|
| INCH | MM | PSI | BAR | PSI | BAR | |
| 1/4" | 06.00 | 14.70 | 5800 | 400 | 23200 | 1600 |
| 3/8" | 10.00 | 19.00 | 4800 | 330 | 19200 | 1320 |
| 5/16" | 08.00 | 16.50 | 5100 | 350 | 20400 | 1400 |
| 1/2" | 12.50 | 22.00 | 4000 | 276 | 16000 | 1103 |
| 3/4" | 20.00 | 29.00 | 3100 | 215 | 12400 | 860 |
| 1" | 25.00 | 37.50 | 2400 | 165 | 9600 | 660 |
| 1-1/4" | 31.50 | 48.00 | 1810 | 125 | 7240 | 500 |
| 1-1/2" | 38.00 | 54.00 | 1310 | 90 | 5240 | 360 |
| 2" | 50.00 | 66.00 | 1160 | 80 | 4040 | 240 |
Key Features:
- Standard: SAE100 R2 AT
- Application: Hydraulic systems for petroleum, water-based fluids, fuel, and lubricants
- Lining: Black oil-resistant synthetic rubber
- Reinforcement: Two braids of high-tensile brass-coated steel wire
- Cover: Abrasion, weather, and aging-resistant synthetic rubber
- Temperature Range: -40°C to +100°C
Why Flexi Hose?
- Reliable Hydraulic SAE 100 R2 hose manufacturer with 30+ years of industry expertise
- Available in various sizes and custom configurations
- In-house testing ensures consistent performance and safety
Benefits:
- Enhanced pressure resistance with dual-wire construction
- Reliable performance under continuous hydraulic load
- Excellent flexibility and kink resistance
- Suited for both mobile and industrial hydraulic systems
Applications:
- Earthmovers, cranes, and construction machinery
- Hydraulic equipment in agriculture and mining
- Fuel and lubricant transfer lines
- OEM hydraulic systems
