PTFE Hose Manufacturer in India — Teflon Hose & PTFE Teflon Hose Supplier
High-quality PTFE hose and teflon hose manufactured to SAE 100 R14 standard. Virgin PTFE inner tube with stainless steel wire braid. Bore sizes 1/4″ to 2″ (6 mm to 50 mm) · Working pressure up to 345 bar (1/4″ bore) · Temperature range −60°C to +260°C · Smooth bore and convoluted bore options. Manufactured in Bhiwadi, Rajasthan by Vardhman Hydraulic Hoses Pvt. Ltd. (Flexihose India) — factory-direct supply across India and GCC export.
What Is PTFE Hose (Teflon Hose)?
A PTFE hose — also called a teflon hose, PTFE teflon hose, or hose teflon — is a flexible hose assembly consisting of a virgin PTFE (polytetrafluoroethylene) inner tube with an external stainless steel wire braid. PTFE, commercially known as Teflon, is chemically inert to virtually all industrial chemicals, solvents, acids, and alkalis — making PTFE hose the correct choice when rubber hose or stainless steel hose is not chemically compatible with the process fluid. Flexihose India manufactures PTFE hose to the SAE 100 R14 standard at our ISO 9001:2015 and IATF 16949:2016 certified plant in Bhiwadi, Rajasthan.
The teflon hose inner tube is extruded from virgin PTFE resin — not recycled or filled PTFE — ensuring maximum chemical resistance, low friction, and high purity. The smooth bore PTFE liner provides excellent flow characteristics and is easy to clean, making it ideal for pharmaceutical, food-grade, and high-purity chemical process applications. Convoluted (corrugated) bore PTFE hose is also available where greater flexibility is required at the cost of slightly higher pressure drop.
Flexihose India manufactures PTFE teflon hose at our ISO 9001:2015 and IATF 16949:2016 certified plant in Bhiwadi, Rajasthan — approximately 60 km from Delhi. We supply factory-direct to chemical, pharmaceutical, power generation, food processing, and automotive buyers across India and export to the GCC. Bore sizes from 1/4″ to 2″ with working pressures from 69 bar (2″ bore) to 345 bar (1/4″ bore) depending on braid configuration.
PTFE Hose — Types & Configurations
Flexihose PTFE teflon hose is available in four main configurations — select based on your pressure requirement, bore profile, and application environment.
Smooth bore virgin PTFE inner tube with a single layer of stainless steel wire braid. The most widely used PTFE hose configuration — suitable for chemical transfer, pharmaceutical process lines, food-grade applications, and hydraulic circuits with aggressive fluids.
Smooth bore PTFE inner tube with two layers of stainless steel wire braid for higher working pressure. Specified for high-pressure chemical injection lines, hydraulic circuits with aggressive fluids, and process applications where single braid pressure ratings are insufficient.
Convoluted (corrugated) PTFE inner tube with stainless steel wire braid. Provides greater flexibility and tighter bend radius than smooth bore PTFE hose — suitable for tight routing, vibration absorption, and applications where installation space is limited.
Carbon-loaded (electrically conductive) PTFE inner tube with stainless steel wire braid. Prevents static charge build-up during transfer of flammable solvents, fuels, and chemicals — required in ATEX/hazardous area applications and fuel dispensing systems.
PTFE Hose — Full Technical Specification Table (SAE 100 R14)
Complete dimensional and pressure data for Flexihose PTFE teflon hose — smooth bore, single SS braid — bore sizes 1/4″ to 2″ per SAE 100 R14 Type A. Working pressure and burst pressure vary by bore size as shown below.
| Size (inch) | Bore ID (mm) | O.D. (mm) | Min. Bend Radius (mm) | Working Pressure (bar) | Test Pressure (bar) | Burst Pressure (bar) | Temperature Range |
|---|---|---|---|---|---|---|---|
| 1/4″ | 6.4 | 12.7 | 50 | 345 | 690 | 1380 | −60°C to +260°C |
| 5/16″ | 7.9 | 14.3 | 65 | 310 | 620 | 1240 | −60°C to +260°C |
| 3/8″ | 9.5 | 16.0 | 75 | 275 | 550 | 1100 | −60°C to +260°C |
| 1/2″ | 12.7 | 19.8 | 100 | 207 | 414 | 828 | −60°C to +260°C |
| 3/4″ | 19.1 | 27.0 | 150 | 138 | 276 | 552 | −60°C to +260°C |
| 1″ | 25.4 | 34.9 | 200 | 103 | 206 | 414 | −60°C to +260°C |
| 1-1/4″ | 31.8 | 42.9 | 250 | 86 | 172 | 345 | −60°C to +260°C |
| 1-1/2″ | 38.1 | 50.8 | 300 | 69 | 138 | 276 | −60°C to +260°C |
| 2″ | 50.8 | 65.1 | 400 | 69 | 138 | 276 | −60°C to +260°C |
Construction: Virgin PTFE (Teflon) smooth bore inner tube · Single stainless steel wire braid (AISI 304 or AISI 316L) · Manufactured to SAE 100 R14 Type A standard · Double braid (SAE 100 R14 Type B) available for higher working pressures — approximately 1.5× the single braid working pressure · Convoluted bore option available for tighter bend radius requirements · Also referred to as teflon hose, PTFE teflon hose, hose teflon, or PTFE flexible hose in the Indian market · Antistatic (carbon-loaded) PTFE available on request.
How to Select the Right PTFE Hose — Procurement Guide
A practical step-by-step guide for procurement managers, plant engineers, and project buyers selecting PTFE teflon hose for chemical, pharmaceutical, power generation, and industrial applications.
Confirm the Media & Chemical Compatibility
PTFE (Teflon) is chemically inert to virtually all industrial chemicals — acids, alkalis, solvents, fuels, and aggressive process fluids. The main exceptions are molten alkali metals (sodium, potassium), elemental fluorine at high temperatures, and certain fluorinated compounds. For all other media, PTFE hose is the correct choice when rubber or stainless steel hose is not chemically compatible. If in doubt, share your media list with our technical team for confirmation.
Choose Smooth Bore or Convoluted Bore
Smooth bore PTFE hose (SAE 100 R14 Type A/B) provides lower pressure drop, better flow characteristics, and easier cleaning — preferred for pharmaceutical, food-grade, and high-purity chemical applications. Convoluted (corrugated) bore PTFE hose provides greater flexibility and tighter minimum bend radius — preferred where installation space is limited or where the hose must flex repeatedly in service. Specify bore type when ordering.
Select Single or Double Braid
Single braid PTFE hose (SAE 100 R14 Type A) covers working pressures from 69 bar (2″ bore) to 345 bar (1/4″ bore) — suitable for most chemical, pharmaceutical, and process applications. Double braid (SAE 100 R14 Type B) provides approximately 1.5× higher working pressure — specified for high-pressure chemical injection, hydraulic circuits with aggressive fluids, and critical process lines. Confirm your required working pressure against the bore size before ordering.
Check the Temperature Requirement
PTFE hose operates from −60°C to +260°C — significantly wider than rubber hose (typically −40°C to +100°C). This makes PTFE teflon hose the correct choice for high-temperature chemical process lines, steam-traced piping, and cryogenic applications. Note that working pressure decreases at elevated temperatures — at +200°C, derate working pressure by approximately 25%. Confirm operating temperature when ordering for high-temperature service.
Specify End Connections
PTFE hose is typically supplied with end fittings — BSP, NPT, flanged (ANSI/DIN), JIC, or camlock — swaged or crimped to the hose ends. End fittings are available in AISI 304 or AISI 316L stainless steel. For pharmaceutical and food-grade applications, tri-clamp (sanitary) end fittings are available. Specify the end connection type, size, and material when ordering. For aggressive chemical service, AISI 316L fittings are recommended.
Send the Full RFQ Details
For fastest quoting, WhatsApp: bore size (inch or mm), hose length, bore type (smooth/convoluted), braid configuration (single/double), working pressure, media, temperature, end connection type and size, quantity, and delivery city. For antistatic PTFE hose, specify the application (fuel, solvent, ATEX zone). We respond within a few hours with a factory-direct price and lead time.
PTFE Hose — Construction & Materials
Layer-by-layer construction of Flexihose PTFE teflon hose — what each component does and why it matters for chemical resistance, pressure performance, and service life.
Virgin PTFE (Teflon) Inner Tube
The inner tube is extruded from virgin PTFE (polytetrafluoroethylene) resin — not recycled or filled PTFE. Virgin PTFE provides maximum chemical resistance (compatible with virtually all industrial chemicals), the lowest coefficient of friction of any solid material, non-stick surface for easy cleaning, and FDA/food-grade compliance. The smooth bore profile minimises pressure drop and prevents product contamination. This is the primary chemical barrier and the defining characteristic of a PTFE hose.

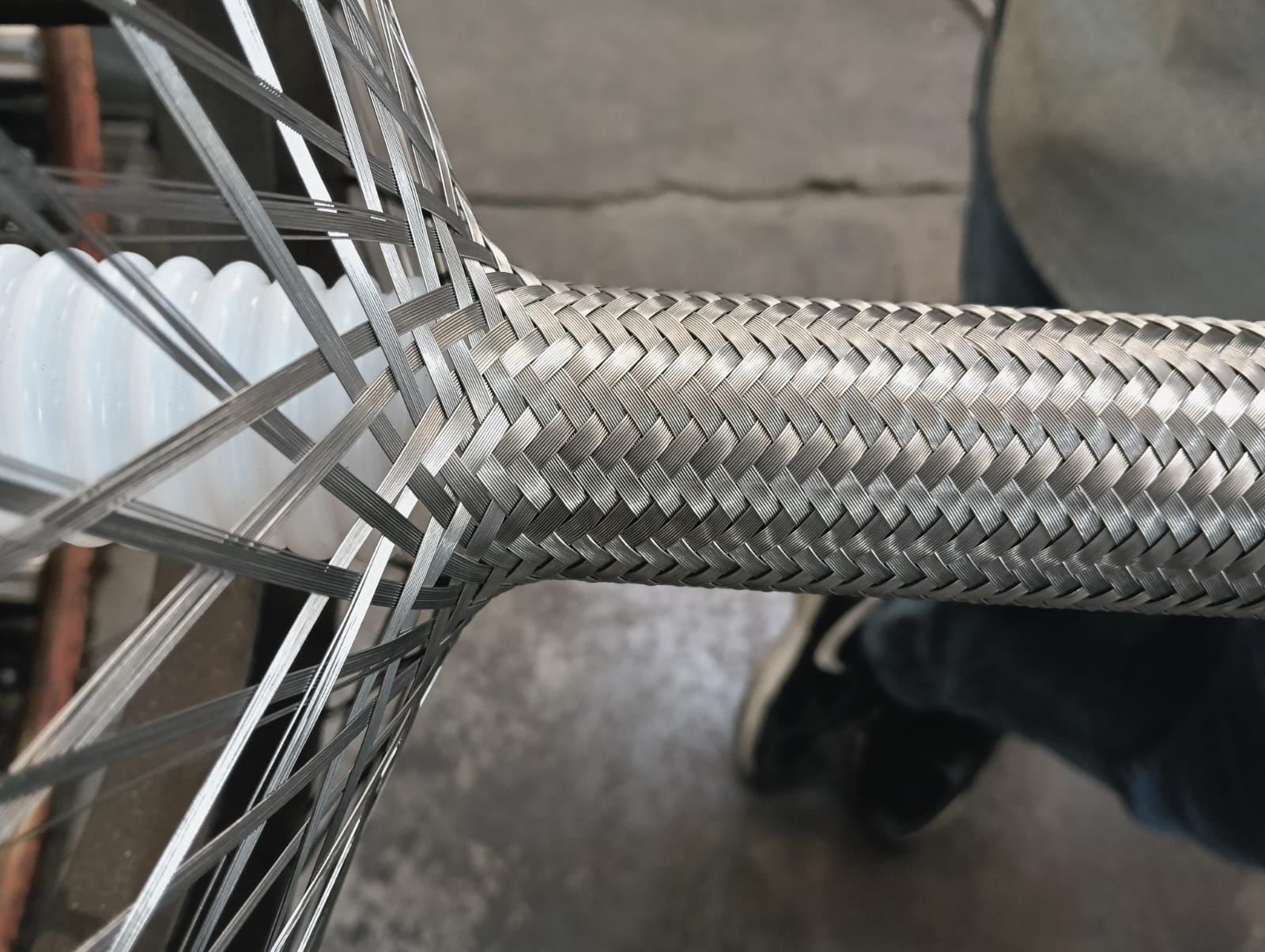

Stainless Steel Wire Braid
The external braid is woven from stainless steel wire (AISI 304 or AISI 316L) over the PTFE inner tube. The braid provides pressure resistance — it carries the hoop stress generated by internal pressure, allowing the PTFE tube to operate at working pressures far above its unbraided rating. Single braid (SAE 100 R14 Type A) covers up to 345 bar at 1/4″ bore. Double braid (SAE 100 R14 Type B) provides approximately 1.5× higher working pressure for demanding applications.
SAE 100 R14 Compliance
Flexihose PTFE hose is manufactured to SAE 100 R14 — the SAE International standard for PTFE hose assemblies with stainless steel wire braid. Type A specifies single braid; Type B specifies double braid. SAE 100 R14 compliance ensures the hose meets internationally accepted dimensional, pressure, and performance requirements — and is accepted in Indian and GCC procurement specifications for chemical, pharmaceutical, and industrial plant applications.
In-House Testing & Certification
Every production batch is tested at our Bhiwadi in-house laboratory with NABL-calibrated equipment: hydrostatic pressure test at 2× working pressure, burst pressure test, dimensional checks, and chemical resistance verification. Test certificates with actual measured values are issued as standard with every order — not templated data. Useful for tender submissions (BHEL, NTPC, ONGC, and other PSU buyers), plant commissioning documentation, and GCC export requirements.

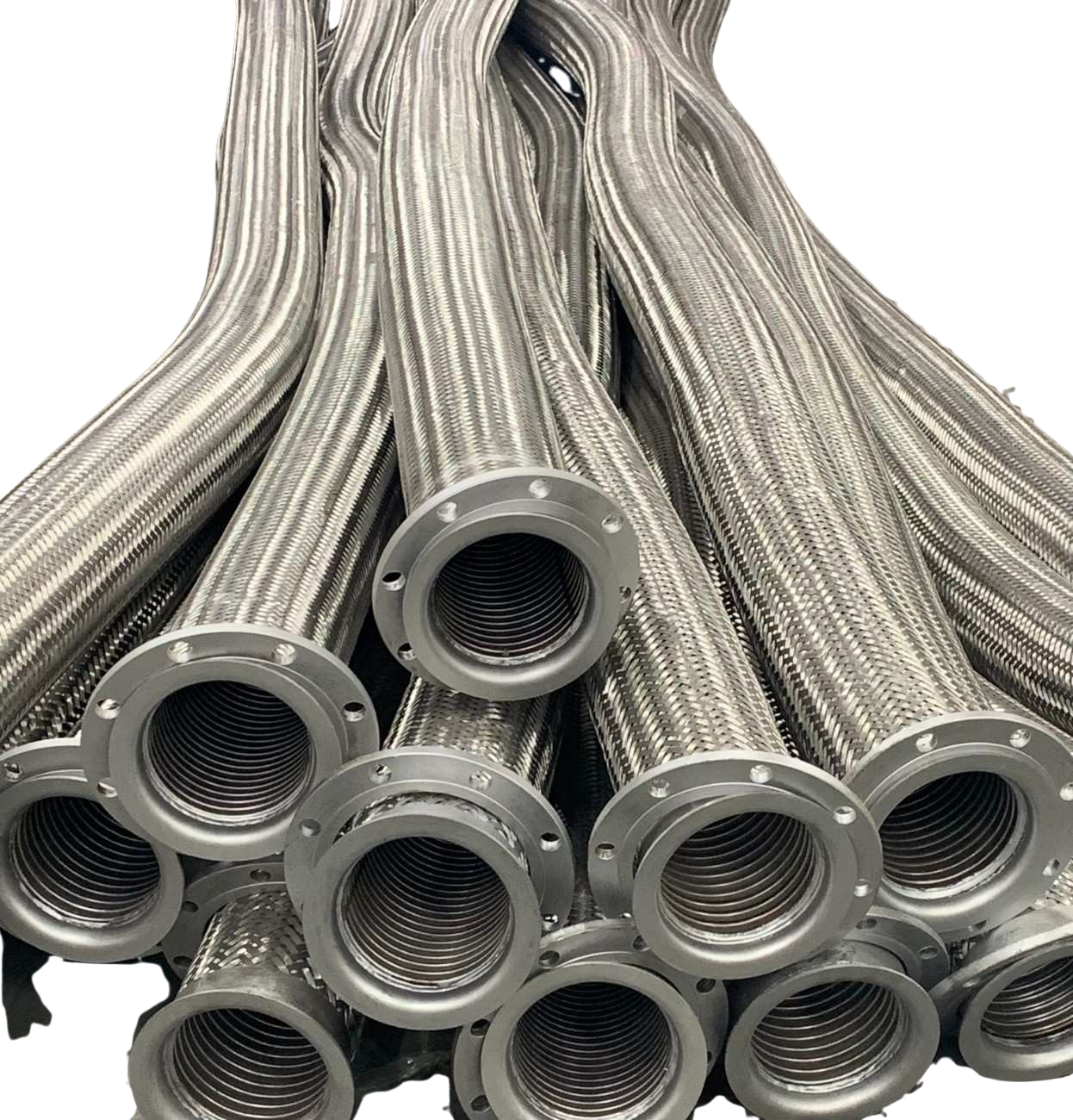

PTFE Hose vs Rubber Hose vs SS Flexible Hose — Which to Choose?
A practical comparison to help procurement managers and plant engineers select the correct flexible hose type for their application.
| Parameter | PTFE Hose (Teflon Hose) | Rubber Hydraulic Hose | SS Flexible Hose Pipe |
|---|---|---|---|
| Inner Tube Material | Virgin PTFE (Teflon) liner | NBR / EPDM / SBR rubber | AISI 304 / 316L / 321 SS |
| Temperature Range | −60°C to +260°C | −40°C to +100°C (NBR) | −200°C to +700°C |
| Chemical Resistance | Exceptional — universal (virtually all chemicals) | Limited to compatible fluids | Excellent (316L for corrosives) |
| Max Working Pressure | Up to 345 bar (1/4″ bore, single braid) | Up to 420 bar (4SP/4SH spiral) | Up to 110 bar (6 mm bore, single braid) |
| Flexibility | Good (smooth bore) / Excellent (convoluted) | Excellent | Good (annular corrugation) |
| Typical Use | Aggressive chemicals, pharma, high-purity process, fuel | Hydraulic circuits, industrial machinery | Steam, gas, chemical, HVAC, oil & gas |
| Standard | SAE 100 R14 | SAE J517 / EN 856 | EN ISO 10380 |
PTFE hose (teflon hose) is the correct choice when the application involves aggressive chemicals, solvents, acids, or alkalis that are not compatible with rubber or stainless steel hose — or when FDA/food-grade compliance is required. For hydraulic circuits at ambient temperature with petroleum-based fluids, rubber hydraulic hose (R1/R2/4SP) is more cost-effective. For high-temperature steam and gas applications, SS flexible hose pipe is preferred. Not sure? WhatsApp your media, temperature, and pressure to +91 8094002348 for a recommendation.
PTFE Hose — Applications & Industries
Typical use environments for Flexihose PTFE teflon hose across chemical, pharmaceutical, power generation, food processing, automotive, and industrial markets in India and the GCC.
Chemical & Petrochemical Plants
PTFE hose for transfer of acids, alkalis, solvents, and aggressive process chemicals in chemical plants, refineries, and petrochemical facilities where rubber hose is not chemically compatible. Widely used in BHEL, NTPC, ONGC, and other PSU plant applications.
Pharmaceutical & Biotech
FDA-compliant smooth bore PTFE teflon hose for high-purity pharmaceutical process lines, API transfer, solvent handling, and CIP/SIP (clean-in-place/steam-in-place) systems where product purity and non-contamination are critical.
Power Generation — BHEL, NTPC
PTFE hose for boiler chemical dosing lines, demineralised water transfer, acid and alkali handling in power plants. Flexihose has supplied teflon hose to BHEL (Trichy) and NTPC projects — test certificates and PSU documentation available as standard.
Food & Beverage Processing
FDA-compliant smooth bore PTFE hose for food-grade fluid transfer, flavour and ingredient lines, and hygienic process connections in food and beverage manufacturing plants where rubber hose is not food-safe for the specific media.
Automotive & Fuel Systems
Antistatic PTFE hose for fuel lines, brake fluid transfer, and automotive chemical handling where static charge build-up must be prevented. IATF 16949:2016 certified manufacturing — suitable for automotive OEM and Tier 1 supplier requirements.
Hydraulic Systems with Aggressive Fluids
PTFE teflon hose for hydraulic circuits using phosphate ester fluids, water-glycol, or other synthetic hydraulic fluids that are not compatible with standard rubber hydraulic hose inner tube compounds.
Why Buy PTFE Hose from Flexihose India?
What plant engineers, procurement managers, EPC contractors, and industrial buyers value when sourcing PTFE teflon hose directly from the manufacturer.
SAE 100 R14 Compliant — Internationally Accepted
Our PTFE hose is manufactured to SAE 100 R14 — the international standard for PTFE hose assemblies with stainless steel wire braid. Accepted in Indian and GCC procurement specifications. Test certificates with actual measured values issued as standard with every order — essential for PSU tender submissions (BHEL, NTPC, ONGC).
ISO 9001:2015 & IATF 16949:2016 Certified
Flexihose India holds both ISO 9001:2015 (general quality management) and IATF 16949:2016 (automotive quality management) certifications — making our PTFE hose suitable for automotive OEM, Tier 1 supplier, and demanding industrial procurement requirements where dual certification is specified.
Factory-Direct — No Middlemen
You deal directly with the manufacturer. Factory-direct pricing means significant cost savings on bulk and project orders versus trading company sources. Our technical team provides accurate specification support — bore type, braid configuration, end fitting selection, and chemical compatibility confirmation.
PSU Supply Track Record
Flexihose India has supplied PTFE teflon hose to BHEL (High Pressure Boiler Plant, Trichy) and NTPC projects through GeM and direct procurement. We understand PSU documentation requirements — test certificates, material certificates, BHEL SUVIDHA portal compliance, and GeM seller registration.
Custom Lengths & End Fittings
Cut lengths and complete hose assemblies with swaged or crimped end fittings — BSP, NPT, flanged (ANSI/DIN), JIC, tri-clamp (sanitary), or camlock — all available in AISI 304 or AISI 316L stainless steel. Custom bore sizes and non-standard configurations on request. Share your drawing or specification via WhatsApp for a fast turnaround quote.
Export-Ready Documentation
For GCC buyers: commercial invoice, packing list, certificate of origin, material test certificates (MTCs), and SAE 100 R14 compliance certificates as standard. Sea freight to Dubai approximately 10–12 days, Jeddah/Muscat approximately 14–18 days from Bhiwadi. Export enquiries: mktg@flexihoseindia.com or +91 9251554066.
Pan-India PTFE Hose Supply & Distribution
Factory-direct PTFE teflon hose dispatch from Bhiwadi, Rajasthan for plant engineers, EPC contractors, OEM buyers, and industrial distributors across India.
Our plant is located in the RIICO Industrial Area, Bhiwadi, Rajasthan — approximately 60 km from Delhi. This gives Flexihose strong freight access to North India and efficient road connectivity for chemical, pharmaceutical, power generation, and industrial buyers nationwide.
For RFQs, share the bore size, bore type (smooth/convoluted), braid configuration, hose length, end fitting type, working pressure, media, and destination city. We confirm availability, lead time, and pricing within a few hours.
| City / Region | Transit Time | Key Industries |
|---|---|---|
| Delhi NCR | 1–2 days | Chemical, pharma, industrial |
| Jaipur & Rajasthan | Same/next day | Chemical, mining, industrial plants |
| Ludhiana & Chandigarh | 1–2 days | Pharma, food processing, industrial |
| Ahmedabad / Vadodara / Surat | 2–3 days | Chemical, pharma, textile, refinery |
| Mumbai & Pune | 3–4 days | Pharma, chemical, automotive, HVAC |
| Chennai & Coimbatore | 4–5 days | BHEL Trichy, chemical, food processing |
| Hyderabad & Bengaluru | 4–5 days | Pharma, chemical, biotech |
| Kolkata & Bhubaneswar | 4–5 days | Refinery, port equipment, heavy industry |
Need PTFE hose urgently? WhatsApp your bore size, bore type, quantity, and city — we confirm stock and dispatch timeline within a few hours. Bulk orders, project supply, and annual rate contracts available. PSU documentation (test certificates, material certificates) issued as standard.
Check Availability for Your City
Need a Quote for PTFE Hose / Teflon Hose?
Get factory-direct pricing on PTFE hose and teflon hose — 1/4″ to 2″ bore, SAE 100 R14, smooth bore or convoluted, single or double braid. Share your bore size, type, quantity, and city for a same-day quote.
Frequently Asked Questions — PTFE Hose & Teflon Hose
PTFE hose (also called teflon hose, PTFE teflon hose, or hose teflon) is a flexible hose assembly consisting of a virgin PTFE (polytetrafluoroethylene) inner tube with an external stainless steel wire braid. PTFE, commercially known as Teflon, is chemically inert to virtually all industrial chemicals, solvents, acids, and alkalis. PTFE hose is manufactured to SAE 100 R14 standard and operates from −60°C to +260°C. It is used in chemical, pharmaceutical, food processing, power generation, and automotive applications where rubber or stainless steel hose is not chemically compatible.
Smooth bore PTFE hose has a straight, smooth inner tube — providing lower pressure drop, better flow characteristics, and easier cleaning. It is preferred for pharmaceutical, food-grade, and high-purity chemical applications. Convoluted (corrugated) bore PTFE hose has a corrugated inner tube — providing greater flexibility and a tighter minimum bend radius than smooth bore. It is preferred where installation space is limited or where the hose must flex repeatedly in service. Smooth bore is the more common configuration for most industrial applications.
SAE 100 R14 Type A specifies PTFE hose with a single layer of stainless steel wire braid. Type B specifies PTFE hose with two layers of stainless steel wire braid (double braid). Type B provides approximately 1.5× higher working pressure than Type A for the same bore size. Type A (single braid) is the standard configuration for most chemical, pharmaceutical, and process applications. Type B (double braid) is specified for high-pressure chemical injection lines, hydraulic circuits with aggressive fluids, and critical process applications where single braid pressure ratings are insufficient.
PTFE (Teflon) is chemically inert to virtually all industrial chemicals — including concentrated acids (hydrochloric, sulphuric, nitric, hydrofluoric), alkalis (sodium hydroxide, potassium hydroxide), organic solvents (acetone, MEK, toluene, xylene), fuels, oils, and most aggressive process fluids. The main exceptions are molten alkali metals (sodium, potassium), elemental fluorine at high temperatures, and certain fluorinated compounds. For all other media, PTFE hose provides universal chemical resistance — making it the correct choice when rubber or stainless steel hose is not compatible. Share your media list with our technical team for confirmation.
Working pressure varies by bore size and braid configuration. For single braid PTFE hose (SAE 100 R14 Type A): 345 bar at 1/4″ bore, 310 bar at 5/16″, 275 bar at 3/8″, 207 bar at 1/2″, 138 bar at 3/4″, 103 bar at 1″, 86 bar at 1-1/4″, and 69 bar at 1-1/2″ and 2″. Double braid (Type B) provides approximately 1.5× higher working pressure. Note that working pressure decreases at elevated temperatures — derate by approximately 25% at +200°C. Contact us with your bore size and required working pressure for a recommendation.
PTFE hose operates from −60°C to +260°C — significantly wider than rubber hose (typically −40°C to +100°C) and comparable to stainless steel hose for most process applications. This makes PTFE teflon hose suitable for high-temperature chemical process lines, steam-traced piping, and cryogenic applications. Note that working pressure decreases at elevated temperatures — at +200°C, derate working pressure by approximately 25%. For applications above +260°C, stainless steel corrugated hose (EN ISO 10380) is the correct choice.
PTFE hose price in India varies by bore size, bore type (smooth/convoluted), braid configuration (single/double), hose length, end fitting type, and order quantity. As a direct manufacturer, Flexihose India offers factory-direct pricing without trading margins — significantly lower than distributor or trading company sources. Bulk orders and project supply attract further discounts. WhatsApp +91 8094002348 with your bore size, type, quantity, and city for a current price quote.
Yes. Flexihose India has supplied PTFE teflon hose to BHEL (High Pressure Boiler Plant, Trichy) and NTPC projects through GeM (Government e-Marketplace) and direct procurement. We are registered on GeM and understand PSU documentation requirements — test certificates, material certificates, BHEL SUVIDHA portal compliance, and GeM seller registration. Our ISO 9001:2015 and IATF 16949:2016 certifications are accepted in PSU procurement specifications.
PTFE hose is supplied with end fittings swaged or crimped to the hose ends. Available end connection types include BSP (British Standard Pipe) male and female, NPT (National Pipe Thread), flanged ends (ANSI 150/300 or DIN PN10/16/25/40), JIC (37° flare), tri-clamp (sanitary/hygienic), and camlock couplings. End fittings are available in AISI 304 or AISI 316L stainless steel. For pharmaceutical and food-grade applications, tri-clamp fittings are standard. Specify the end connection type, size, and material when ordering.
Flexihose PTFE hose is manufactured by Vardhman Hydraulic Hoses Pvt. Ltd. at their ISO 9001:2015 and IATF 16949:2016 certified plant in F-621, Phase-1, RIICO Industrial Area, Bhiwadi, Rajasthan 301019 — approximately 60 km from Delhi. The company has been manufacturing flexible hoses since 1980 and supplies factory-direct across India and to GCC export markets.
